Product description

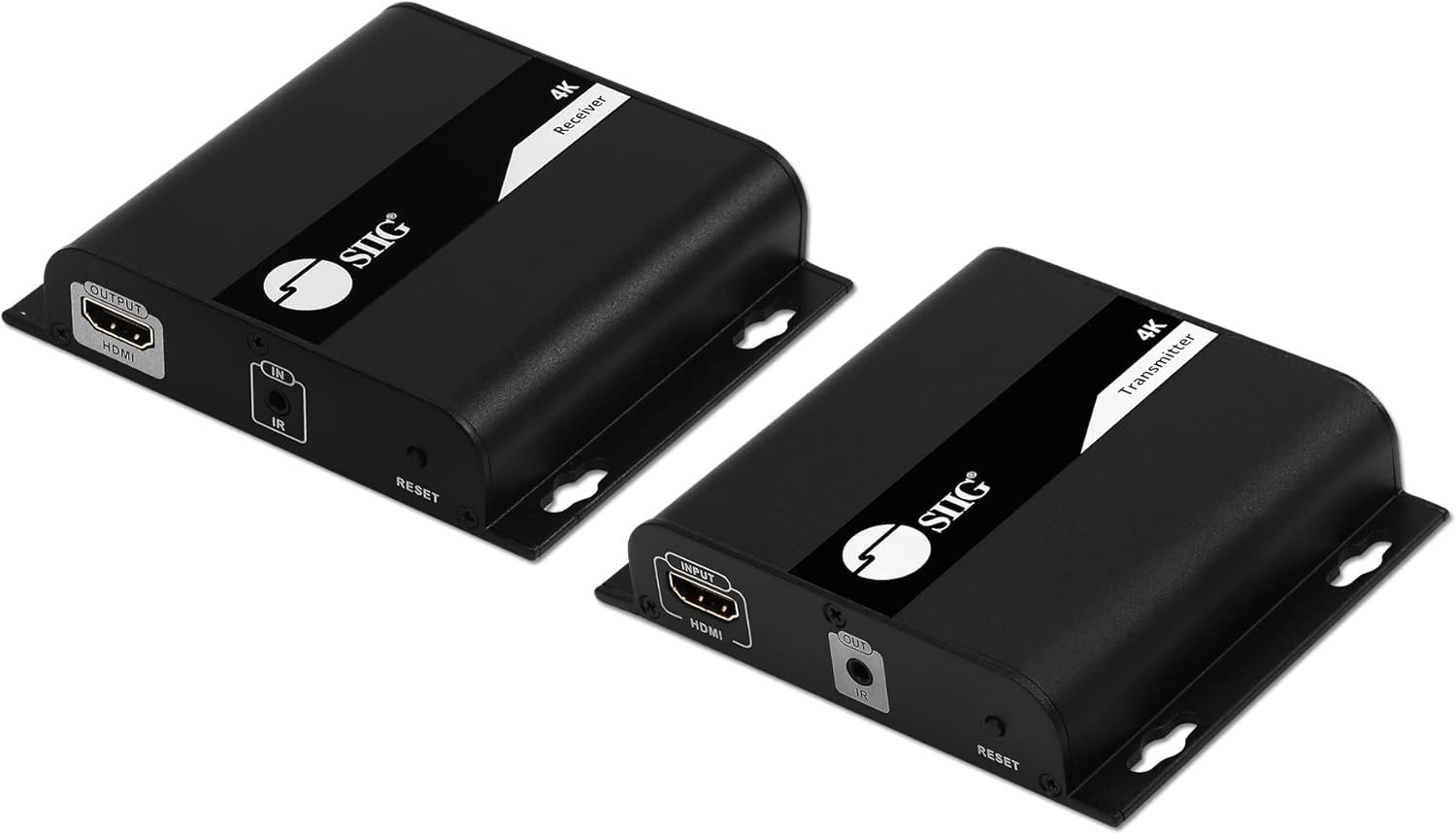

SIIG 4K 30Hz HDMI HDBitT over IP Cat5e/6/7 Ethernet Extender 394 Feet (CE-H25D11-S2)

SIIG 4K 30Hz HDMI HDBitT over IP Cat5e/6/7 Ethernet Extender 394 Feet (CE-H25D11-S2)

What is HDbitT?

HDbitT is a new-generation audio/video digital connection transmission protocol solution. Provides stable performance, long-distance transmission, and high-definition signal.

SIIG’s CE-H25D11-S2 HDMI HDbitT Over IP Extender with IR, 4K 30Hz, Extends HDMI signal up to 394ft (120m) over a single Cat5e/6 cable with IR support with HDbitT transport protocol.

Features

Extend Distance – This HDMI HDbitT over IP Extender with IR is designed for transmission/security. HDMI signals up to 394ft (120m) through HDbitT protocol and Gigabit Ethernet switch to a remote HDMI display.High Performance – This extender offers an actual 10.2Gbps video bandwidth and supports stereo audio.Maximum Compatibility – Supports Plug-n-play. No driver installation is required The reset button allows displays to be re-detected if no collections are detected.Metal Housing Design – The premium metal housing protects the inside PCBA, and also enhances heat dissipation for better performance. Military-grade component for long service life.

Benefits

Highly Scalable – This HDMI extender kit works as a scalable TX/RX matrix over the dedicated IP network and allows up to 256 total units, and extends/splits HDMI signals to multiple displays. The additional receiver unit (Part# CE-H25E11-S2/ ASIN B0BL2Y8S8Q) is sold separately.Note: IGMP Gigabit Switch is recommended for best performance and reliabilityVLAN setup supported – Users can create a separate VLAN for each TX and its corresponding RX’s.IR Extension – The extender kit supports IR pass-through feature allows remote control of the HDMI source device and playback function at the remote display.

Connections

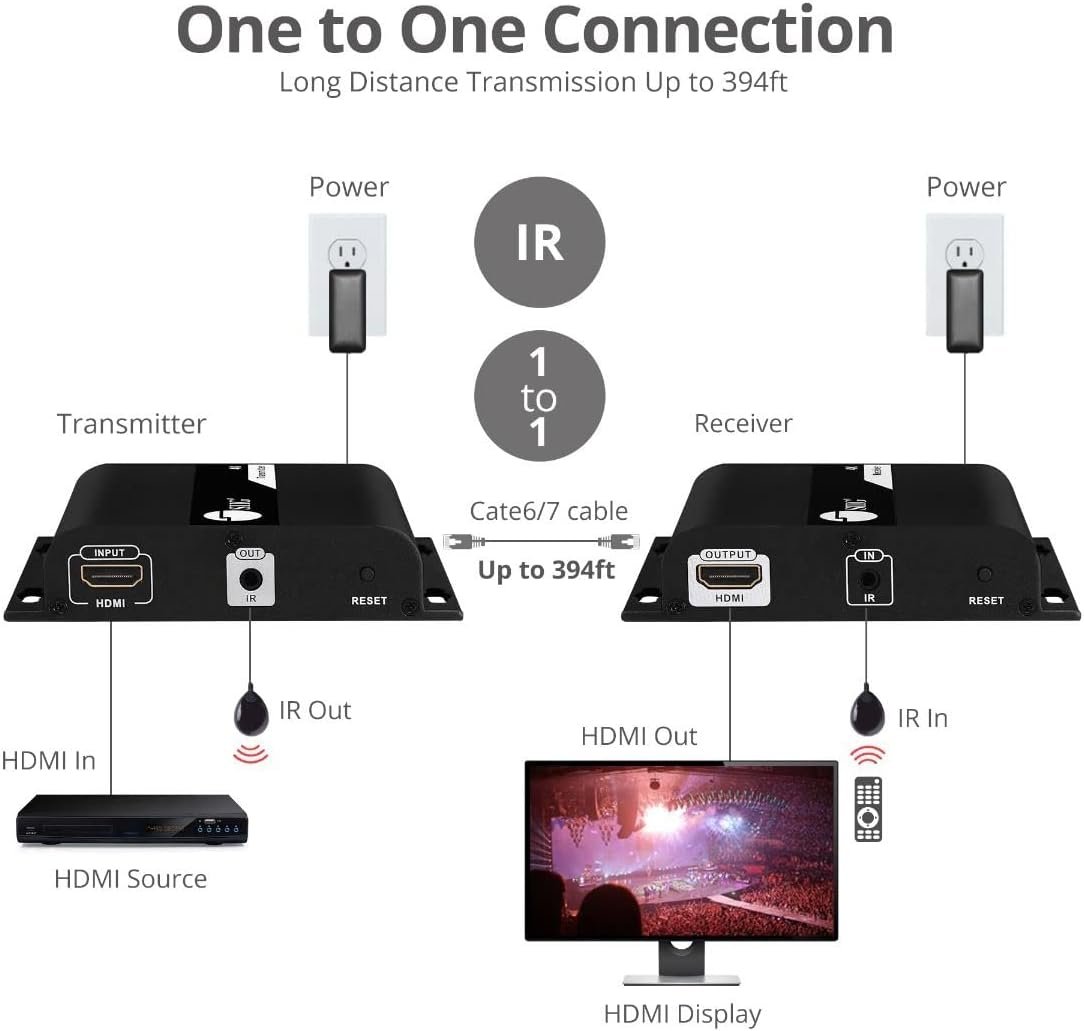

One-to-One Connection

Transmits HDMI audio and video signals to a remote display/monitor over UTP CAT5e/6/7 cable up to 394ft (120m) and sends the 4K HD resolution to the receiver for stable transmission.

One-to-Many Connection

One Transmitter allows multiple receivers to be used simultaneously in multiple configurations, extending /splitting HDMI signals to multiple displays. An IGMP Gigabit Switch is recommended for the best performance and reliability.Note: The additional receiver unit (Part# CE-H25E11-S2/ ASIN B0BL2Y8S8Q) is sold separately.

Before You Setup Please ensure using UTP Cat 5e, Cat 6, or Cat 7 cable for the best video quality and accurate transmission distance.IGMP Switch or Managed Ethernet Switch is recommended for the best performance and reliability. The transmitter (TX) channel must be separated from the local LAN internet system, otherwise, the system is likely to be overloaded.

Read before You Purchase Check if your computer or device is with HDMI port. Check the extended display/ monitor with HDMI port and supports 4K resolution

What is in the Box? TransmitterReceiver2x Power Adapter DC 5V/2AIR blaster extension cableIR receiver extension cable Quick Start Guide

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

5.0 out of 5 stars 1

5.0 out of 5 stars 1

4.3 out of 5 stars 23

4.3 out of 5 stars 23

4.2 out of 5 stars 9

4.2 out of 5 stars 9

Price

$159.59$159.59 $115.99$115.99 $122.99$122.99 $53.59$53.59
— no data

— no data

Input x Output
1 x 1 Receiver (RX) 1 x 1 Receiver (RX) 1 x 1 1 x 1

Transmission Type
Over IP Over IP Over IP Over IP Over Cat 5e/6 Over Cat 5e/6

Transmission Range
394ft (120m) 394ft (120m) 394ft (120m) 394ft (120m) 164ft (50m) 164ft (50m)

Resolutions
4K 30Hz 4K 30Hz 1080p 60Hz 1080p 60Hz 1080p 60Hz 1080p 60Hz

HDCP
1.4 1.4 1.2 1.2 1.2 1.2

HDMI Loopout
X X X X X
✓

IR Passthrough

✓

✓

✓

✓

✓

✓

Cascade
1 to Many 1 to Many 1 to Many 1 to Many 1 to 1 1 to 1

Support Network Switch

✓

✓

✓

✓
X X

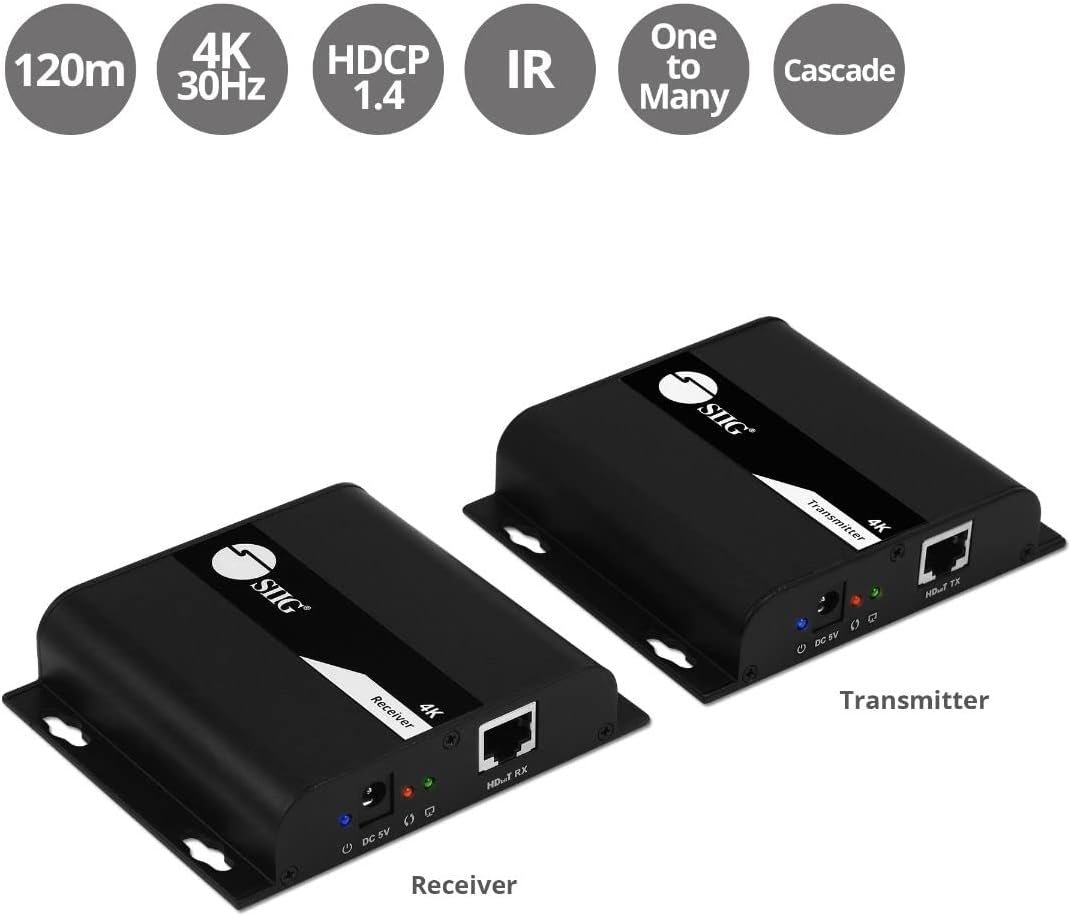

Technical Specifications (CE-H25D11-S2)

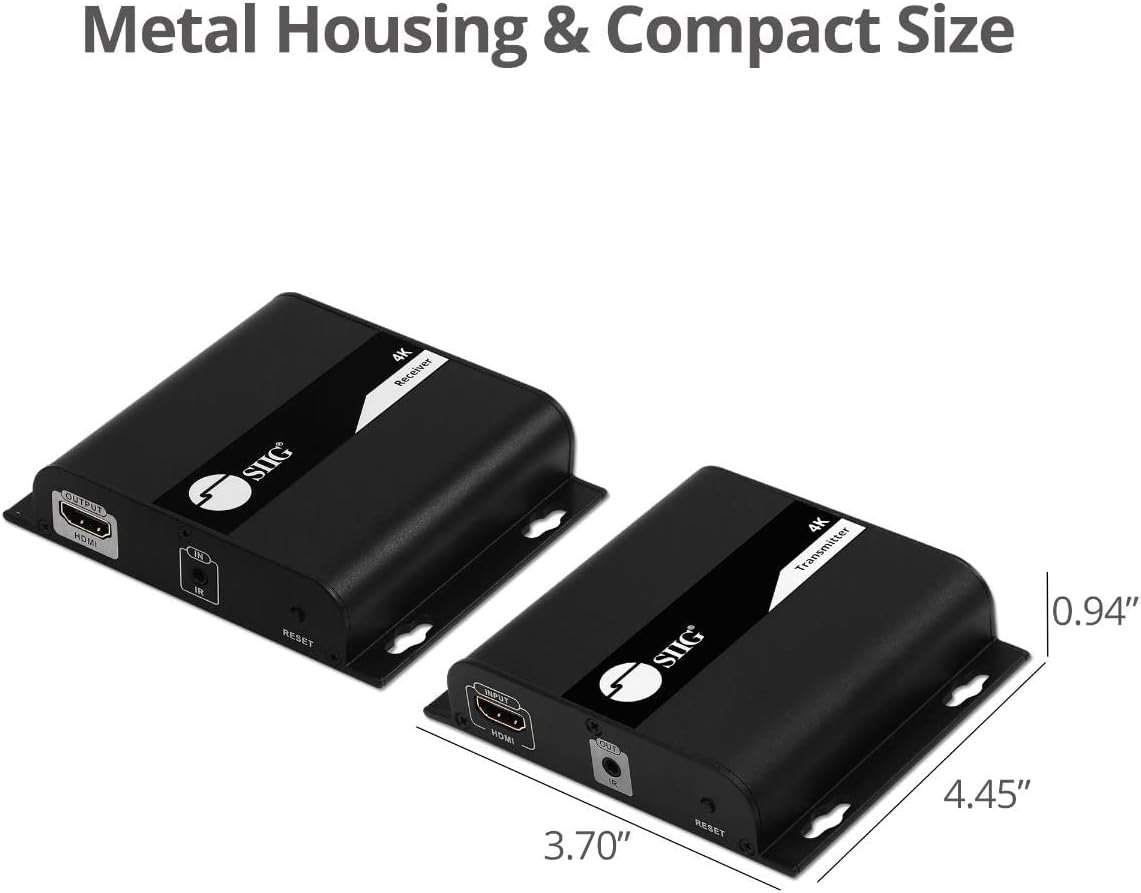

HDMI 1x input, 1x output Resolution 4K@30Hz, 1080p/1080i/720p/480i/480p@60Hz Transport protocol HDbitT protocol – Audio/video digital connection transmission protocol Audio Stereo audio from HDMI, support 192Kbps bit rate IR pass-through Allows remote control of the HDMI source device and playback function at the remote display Full frequency 20KHz to 60KHz Power adapter Input: 100-240V/50-60Hz, Output: DC 5V/2A Transmitter unit (TX) Dimensions: 4.22” (L) x 0.93” (H) x 3.70″ (W) Weight 0.37lbs Receiver unit (RX) Dimensions: 4.22” (L) x 0.93” (H) x 3.70″ (W) Weight 0.37lbs

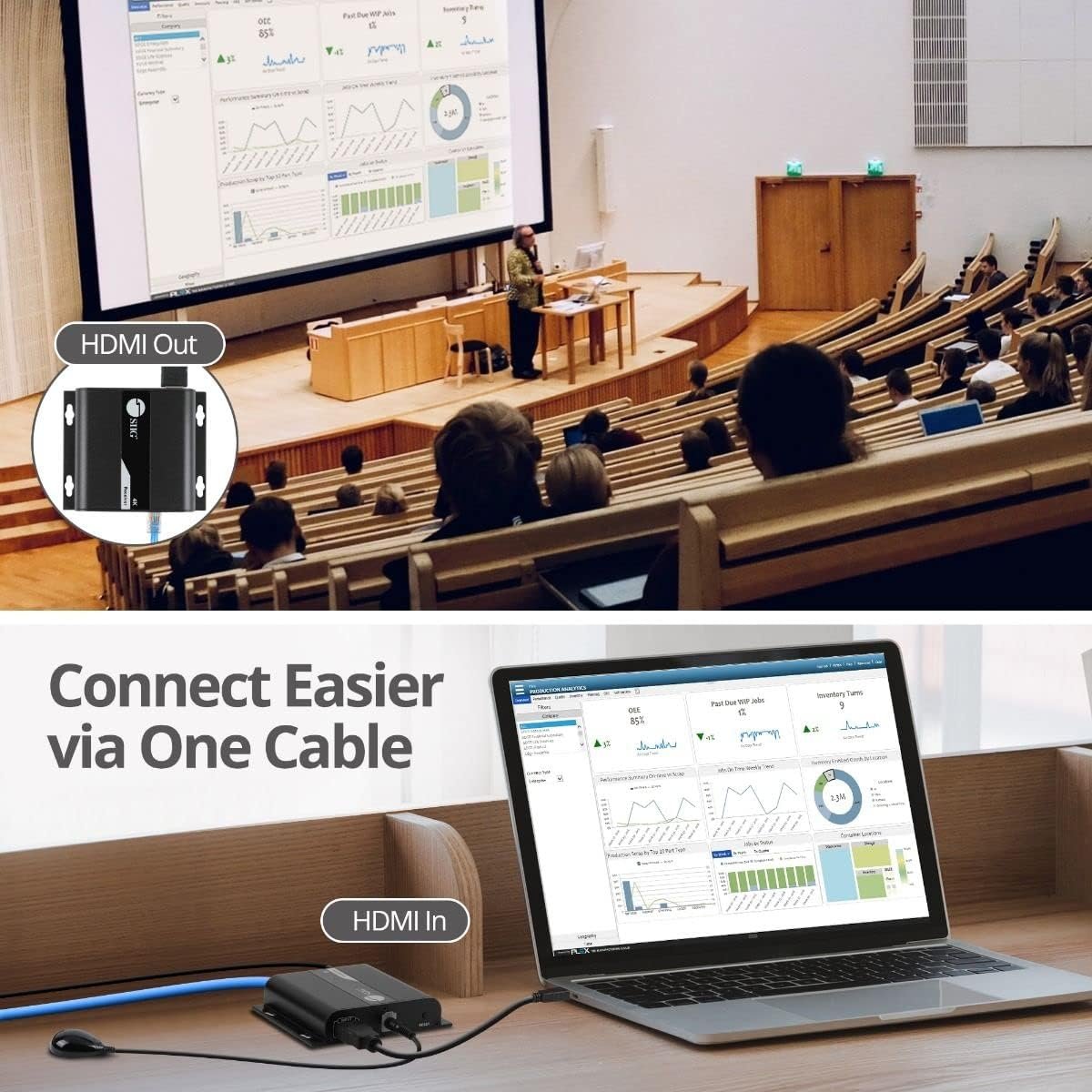

HDMI EXTENDER OVER IP: With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft. Connect your HDMI source device (PC, Blu-ray player, media player) to the Transmitter, utilize the existing Ethernet in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver, Note: This kit comes with one Transmitter and one Receiver.
4K RESOLUTION: Supports up to 4K@30Hz and 1080p. HDMI 1.4 and HDCP 2.2 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high-performance pure copper Cat6 cables to ensure reliable performance. Note: Good quality Cat cables are essential in delivering quality content. Cat6/7 is recommended over Cat5e.

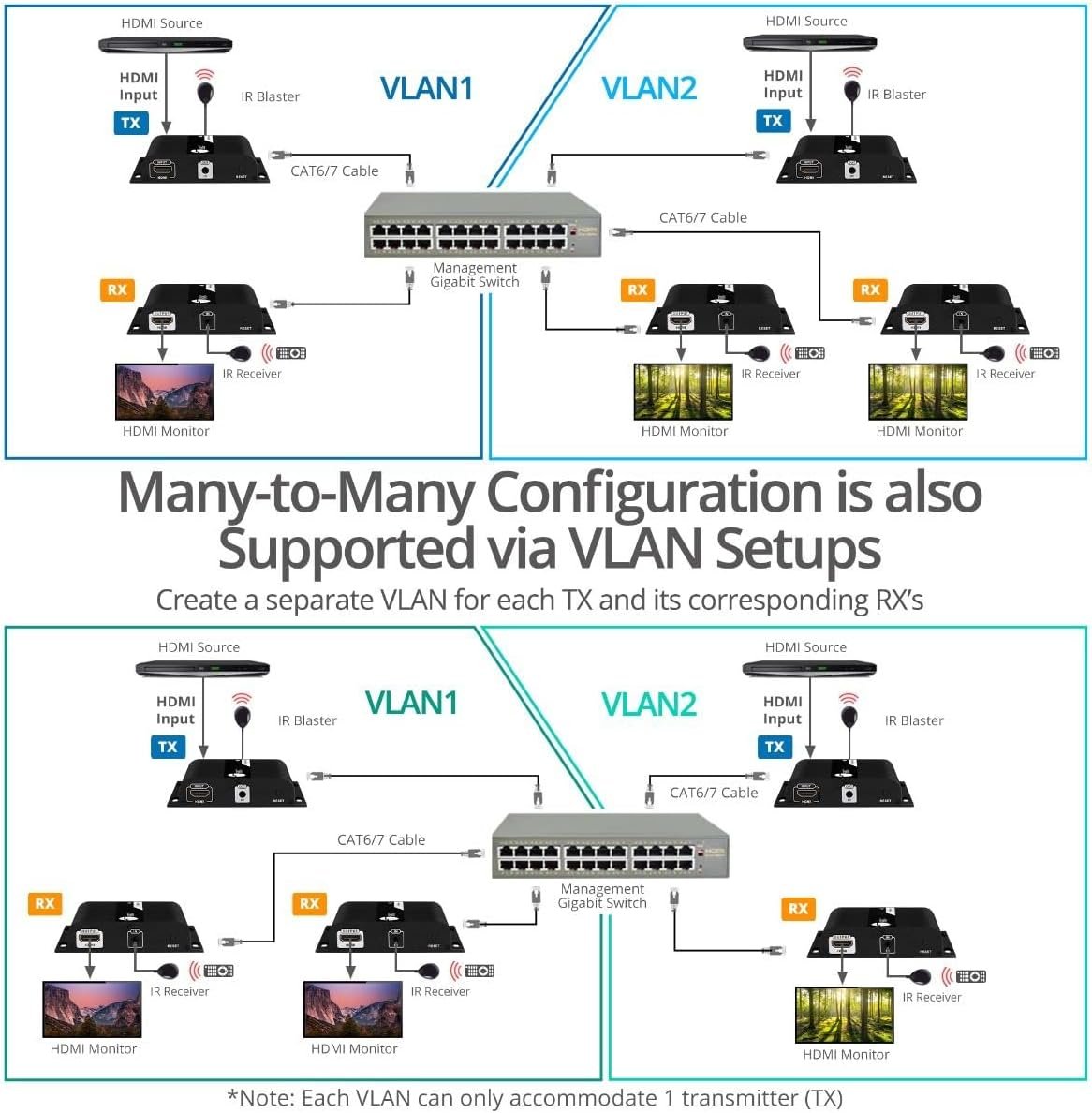

NETWORK DISTRIBUTION: Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches, or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays.
IR EXTENSION: Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6 cable.
ADVANCED FEATURES: One-directional IR control from RX side to TX side. High-quality surface-mountable metal housing efficiently dissipates heat build-up, to ensure system stability.
